R_C_SERVO_DRIVER_CIRCUIT

Published:2009/7/13 3:46:00 Author:May | From:SeekIC

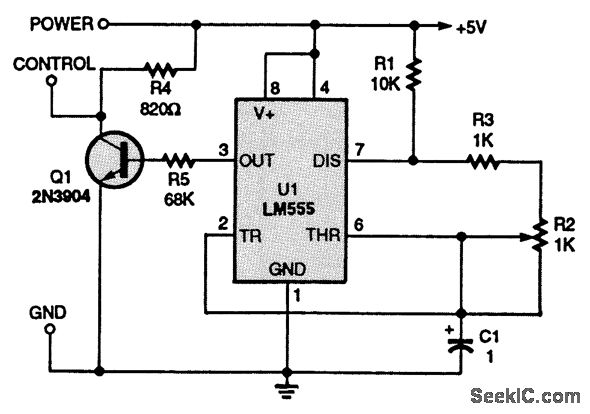

The circuit shown produces the necessary pulse signal to drive R/C servos through a 90°range by adjustment of the pot R2.
