RY926 ceiling fan speed governing integrated circuit diagram

Published:2011/5/9 3:31:00 Author:Ecco | Keyword: ceiling fan, speed governing, integrated circuit | From:SeekIC

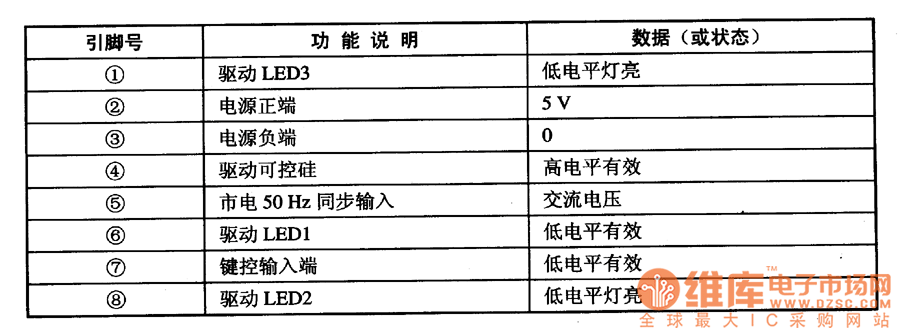

RY926 is the ceiling fan speed governing integrated circuit, which is widely used in the program control circuit of the ceiling fan and power adjusting and automatic light adjustment control of a variety of small household appliances. 1. Pin functions and data RY926 IC uses 8-pin dual in-line package, the pin functions and data are listed in Table. 2. The typical application circuit The ceiling fan speed control system typical application circuit composed of RY926 IC is shown as the chart.
