RTL_or_high_current_driver

Published:2009/7/24 9:24:00 Author:Jessie | From:SeekIC

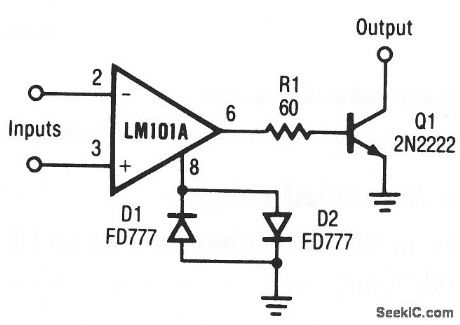

This circuit uses an LM101A as a voltage comparator to drive RTL or other high-current devices. Raytheon Linear Integrated Circuits, 1989, p. 4-247.
