RING_DELAY_STARTING_UNIT

Published:2009/7/15 3:29:00 Author:Jessie | From:SeekIC

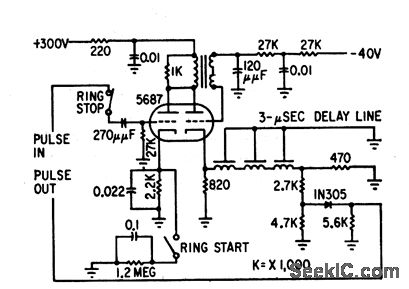

Consists of blocking oscillator and 3-microsec delay line. Ring start switch fires blocking oscillator once and starts ring. Ring stop switch opens oscillator input to slop ring delay from oscillating.-M. T. Nadir, Microsecond Sampler Handles 126 Channels, Electronics, 32:4, p 36-39.
