RINGING_CHOKE_CONVERTER_REGULATOR

Published:2009/7/13 5:34:00 Author:May | From:SeekIC

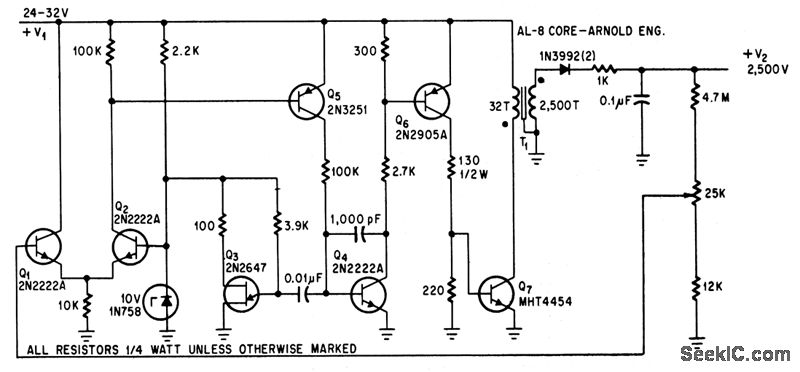

Steps up 32-V d-c pulses to 2.500-V d-c pulses,with regulation of 0.02%, achieved by sampling output and feeding it back to comparision circuit. Uses unijunction transistor Q3 with 04 for pulse generation.-J. F. Howell,Ringing Choke Simplifies D-C to D-C Conversion, Electronics, 39:8, p90-92.
