RGB_NTSC_CONVERTER

Published:2009/7/11 2:31:00 Author:May | From:SeekIC

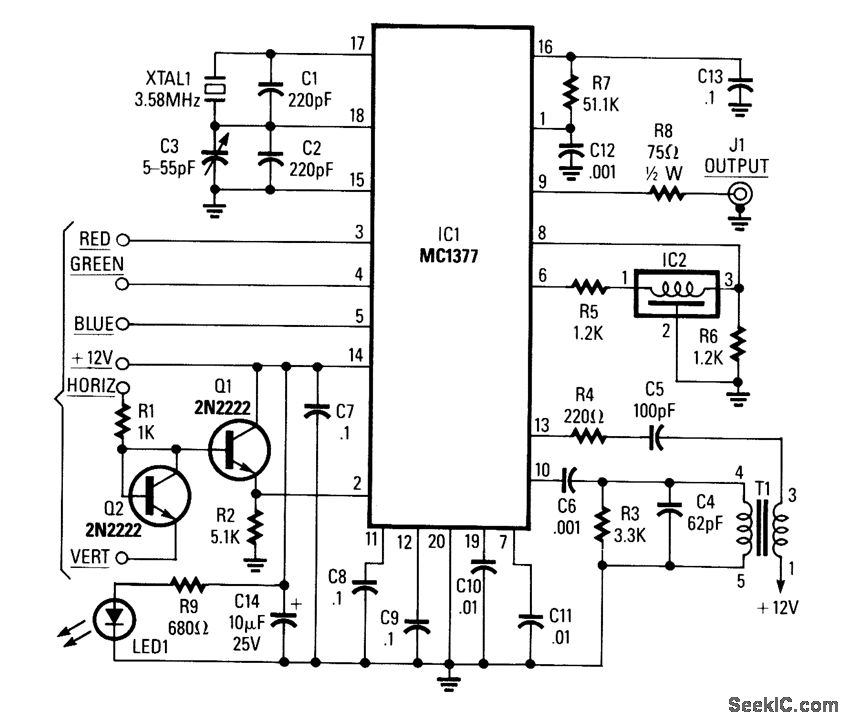

Using a Motorola MC1377, this circuit produces NTSC video from an RGB source. Components are not critical, except for R7 and CB, which should be 1% and 2% tolerance. respectively.
