RETRIGGERABLE_MONO

Published:2009/7/1 20:07:00 Author:May | From:SeekIC

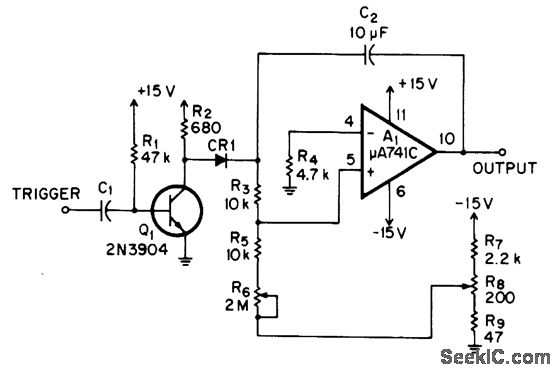

Circuit provides pulse widths up to 60 s, has short reset time, and can be retriggered during timing cycle. Pulse width is determined by C2, R3, R5, and R6.If trigger pulse arrives while output of A1 is high, C2 discharges to its original triggered state for initiating completely new timing cycle.-D. Pantic, Retriggerable Monostable, EDN|EEE Magazine, May 15, 1971, p 50.
