REPETITIVE_MODE_OPERATION

Published:2009/6/30 1:35:00 Author:May | From:SeekIC

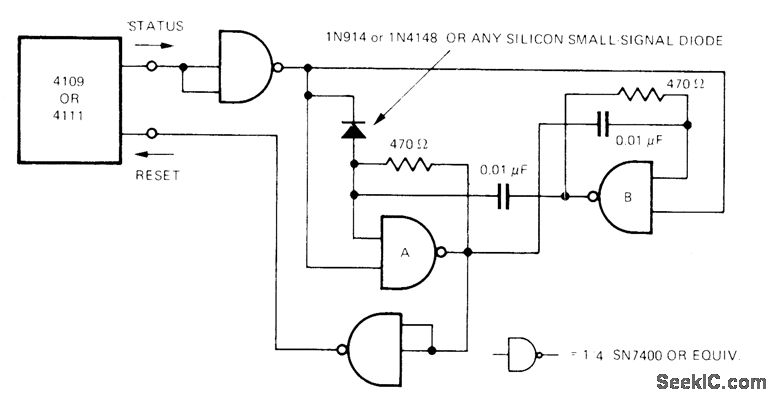

Quicker conversion is obtained in Teledyne Philbrick 4109 or 4111 A/D converter by restarting converter within a few microseconds after status signal, using surestart circuit shown. Reset pulse is fed to converter when status signal is held at low DC level. When status command is high, oscillator A-B is disabled. If reset pulse is not obeyed and status signal remains low, oscillator starts up until conversion does occur.—R.W. Jacobs, Repetitive Mode Operation for Models 4109/4111 Integrating A/D Converters, Teledyne Philbrick, Dedham, MA 1977, AN-28.
