REPEAT_CYCLE

Published:2009/7/12 20:47:00 Author:May | From:SeekIC

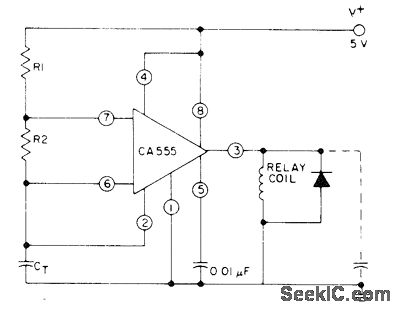

RCA CA555 is connected for astable operation in which total period is sum of individual perids t1 and t2, where t1 = 0.693(R1 + R2)CT and t2 = 0.693R2CT. With 5-V supply, output voltage has rectangular pulses with interval t1 separated by interval t2. With optional capacitor connected, voltage across capacitor is sawtooth that rises for interval t1 and decays for interval t2.- Linear Integrated Circuits and MOS/ FET's, RCA Solid State Division, Somerville, NJ, 1977, p 56.
