RELAY_DELAY

Published:2009/7/14 22:33:00 Author:Jessie | From:SeekIC

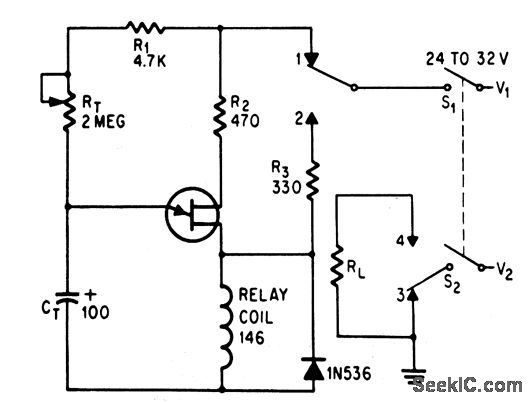

Uuijunction transistor is used to delay operation of relay from 0.5 sec to 3 minutes. CT-RT determine delay interval.-D. V. Jones, Quick-On-The-Trigger Design, Electronics, 38:12, p 105-110.
