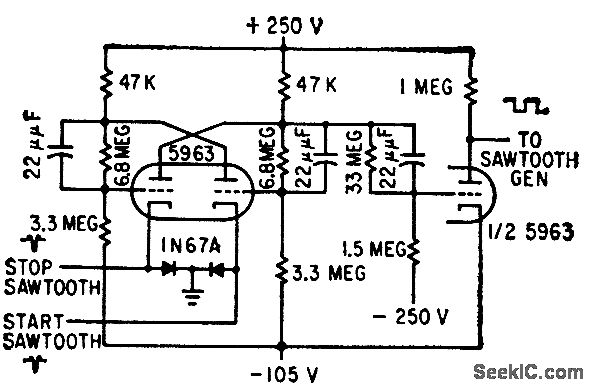

RECORDING_SAWTOOTH_CONTROLLING_FLIP_FLOP

Published:2009/7/20 2:06:00 Author:Jessie | From:SeekIC

Used for sawtooth generator of magnetic drum recording system.-H. L. Daniels and D. K. Sampson, Magnetic Drum Provides Analog Time Delay, Electronics, 32:6, p 44-47.
