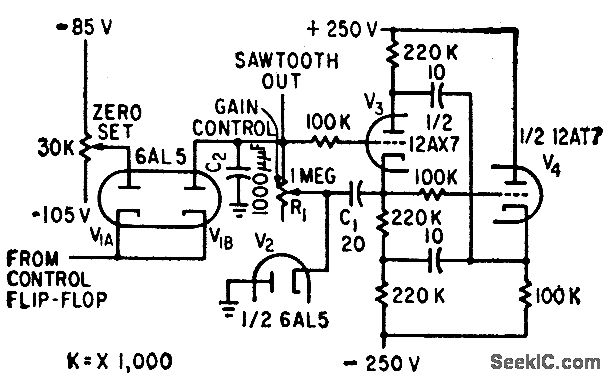

READING_SAWTOOTH_CO_NTROLLING_FLIP_FLOP

Published:2009/7/20 2:08:00 Author:Jessie | From:SeekIC

When flip-flop output is negative with respect to zero-set reference voltage, sow tooth output is dropped through diode gate to reference voltage. Start-sawtooth pulse makes output of flip-flop positive.-H. L. Daniels and D. K. Sampson, Magnetic Drum Provides Analog Time Delay, Electronics, 32:6, p 44-47.
