RADAR_VIDEO_INTEGRATOR

Published:2009/7/16 4:18:00 Author:Jessie | From:SeekIC

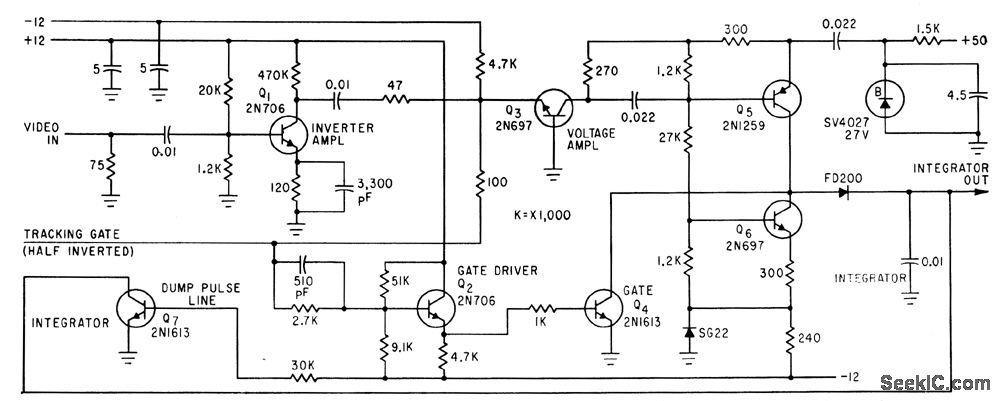

Accepts all video and noise signals within first half of tracking gate and performs voltage -time integration. Identical integrator performs similar function for second half. Results of integrations (integrator out) go to difference detector for comparison.-D. L. Nepveux, Digital Circuits Achieve Automatic Control of Radar Range Tracking, Electronics, 34;52, p46-50.
