RADAR_MOVING_TARGET_SIMULATOR

Published:2009/7/24 2:29:00 Author:Jessie | From:SeekIC

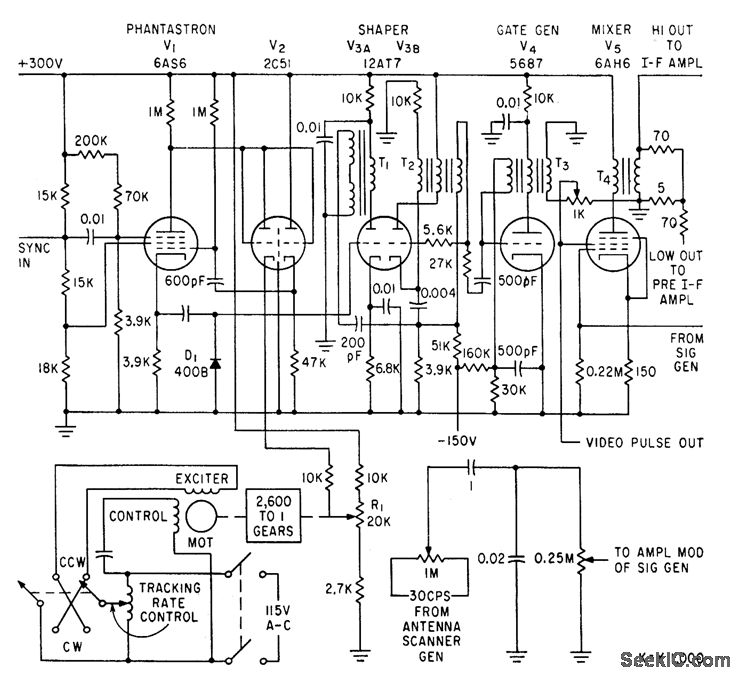

Supplies signal having all characteristics of radar echo, for testing automatic tracking radars under normal and extreme conditions. Phantastron, dual-diode V2, and two-qhase motor serve as variable time-delay.-K. L. Chapman, Moving-Target Simulator Tests Tracking Radars, Electronics, 34:13, p 58-60.
