QUAD_BLOCK

Published:2009/7/16 3:55:00 Author:Jessie | From:SeekIC

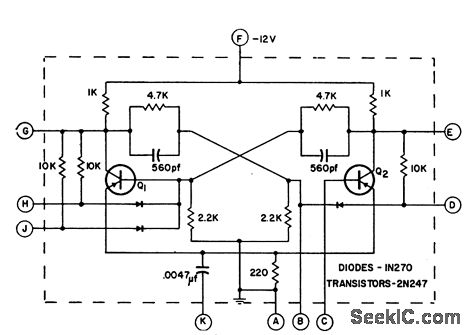

With appropriate interconnections of external terminals, can be used either as binary counter, monostable mvbr, Schmitt trigger, or selector. Although original design uses encapsulated construction, can readily be adapted for integrated circuit production techniques. Requires 10 ma for all applications, and gives output pulses with 0.1 microsec rise time and up to 0.4 microsec fall time.-F. K. Luteran, Four-Way Quad Circuit Building Block, EEE, 10:6, p 66-67.
