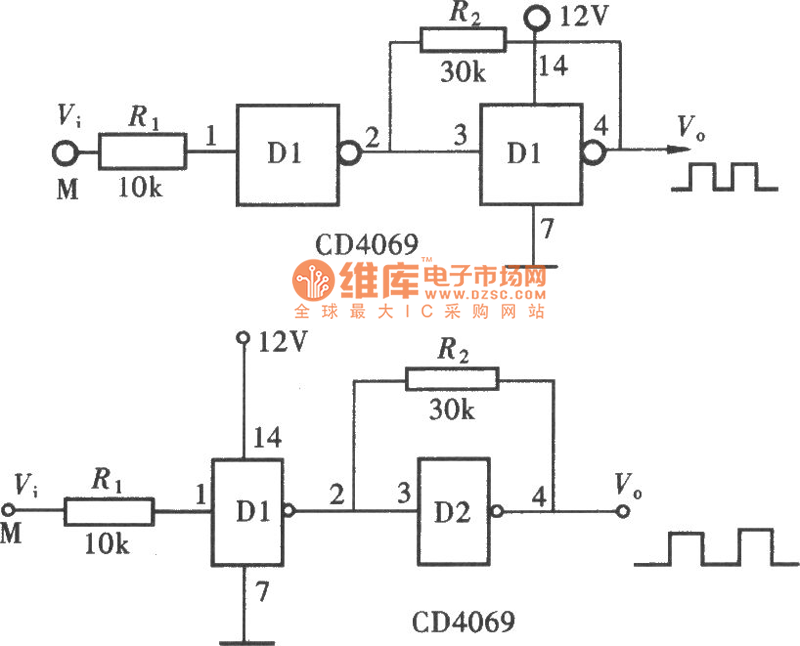

Pulse shaping circuit(CD4069)diagram composed of gate circuit

Published:2011/8/10 3:39:00 Author:nelly | Keyword: Pulse, shaping circuit, gate circuit | From:SeekIC

Due to the CMOS gate circuit has a fixed threshold level, for the part of signal pulse which is lower than threshold level, the gate circuit's input terminal is no answer. With this feature, it is often directly used for the pulse's shaping. In the electronic circuits, the integrated gate circuit is one of the common used circuits. Beside used as control gate, it is also used to form the clock pulse generator. An integrated gate circuit often contains several independent gate circuits, there are alway some spare parts after constituting the circuit's main structure.
