Pulse button control annular oscillator circuit

Published:2011/6/26 2:52:00 Author:TaoXi | Keyword: Pulse, button control, annular oscillator | From:SeekIC

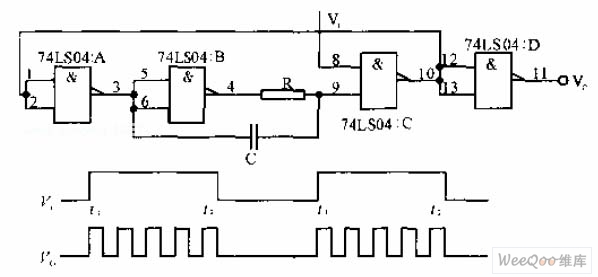

The pulse button control annular oscillator circuit is composed of the NAND gate. If the input Vi is the high level, the oscillator will start oscillating; if the Vi is low level, the oscillator will stop oscillating, the frequency of Vi is much lower than the oscillation frequency.
