Proportional feedback and derivative feedback circuit

Published:2011/11/3 2:55:00 Author:Ecco | Keyword: Proportional feedback , derivative feedback | From:SeekIC

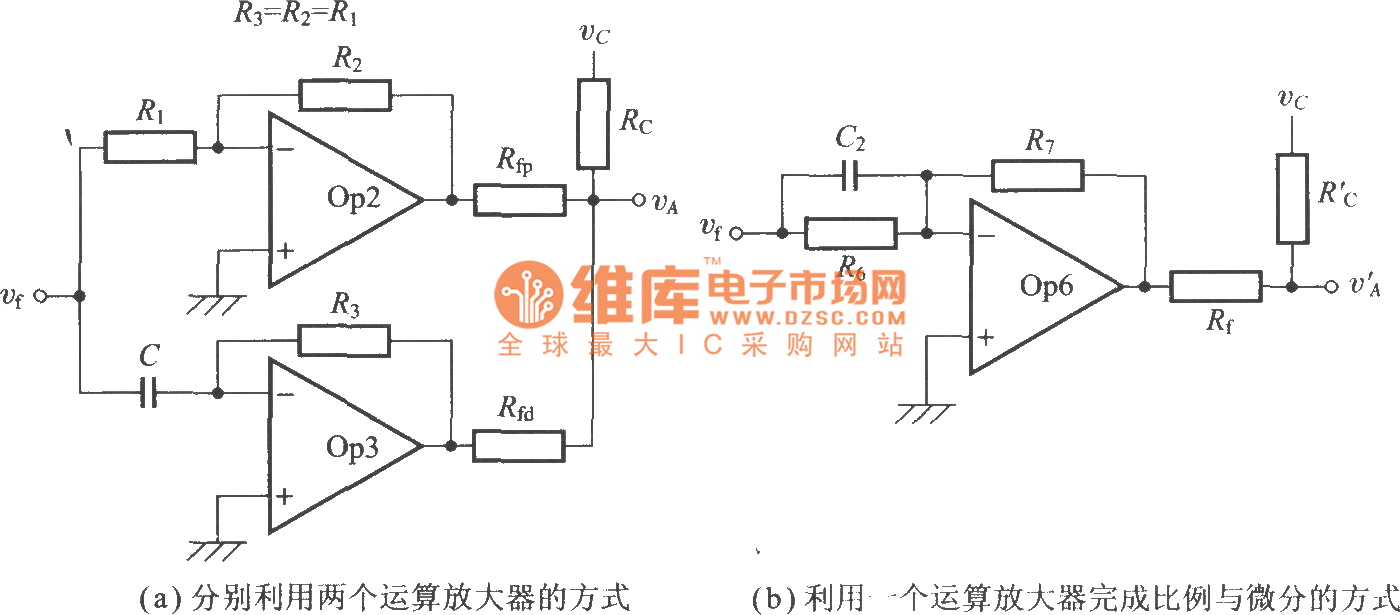

a uses the way with two operational amplifiers; b uses the way with one operational amplifier's completion rate and differential.
