Programmable_power_supply

Published:2009/7/23 22:32:00 Author:Jessie | From:SeekIC

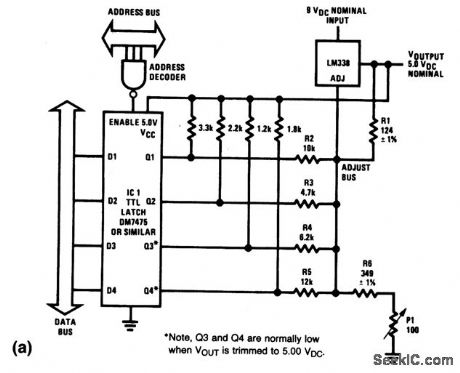

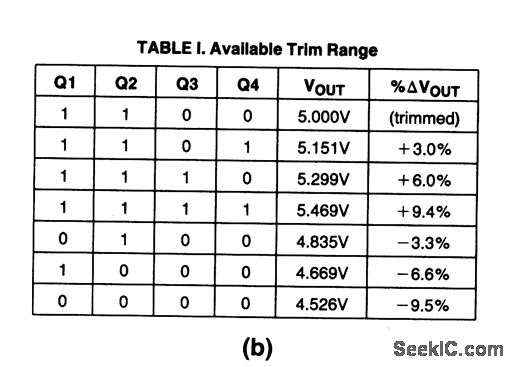

The output of this 5-V digital supply can be trimmed above and below 5-V with digital-logic signals applied to IC1. The exact values for various combinations of logic signals are given in Fig. 6-62B. To calibrate, apply 1100 to IC1, and adjust P1 for 5.000-V output.
