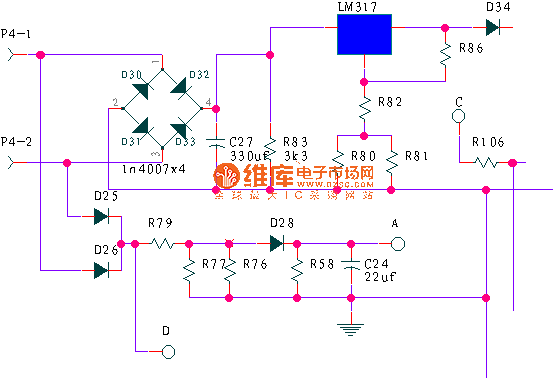

Repairing parts: 1. good or bad of four diodes D30, D31, D32, D33 in bridge rectifier; 2. leakage of filter capacitor C27 ; 3. good or bad of LM317; 4.LM317 external resistors R83, R80, R81, R82, R83, R86 is changing value or not; 5 charging diode D34 is good or bad.
