Published:2012/9/4 20:23:00 Author:Ecco | Keyword: Piezoelectric , Vibration, Sensor, Activates , Switch | From:SeekIC

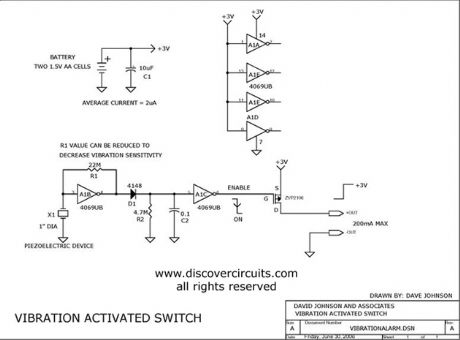

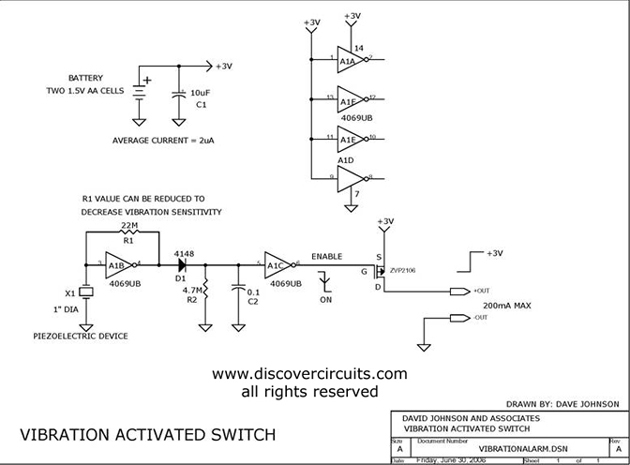

An inexpensive piezoelectric wafer is used to detect vibration and when the vibration is sufficient a switch is activated.
Source: discovercircuits
Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Basic_Circuit/Piezoelectric_Vibration_Sensor_Activates_Switch.html
