PUSH_PULL_AUDIO_LINE_DRIVER

Published:2009/7/13 1:39:00 Author:May | From:SeekIC

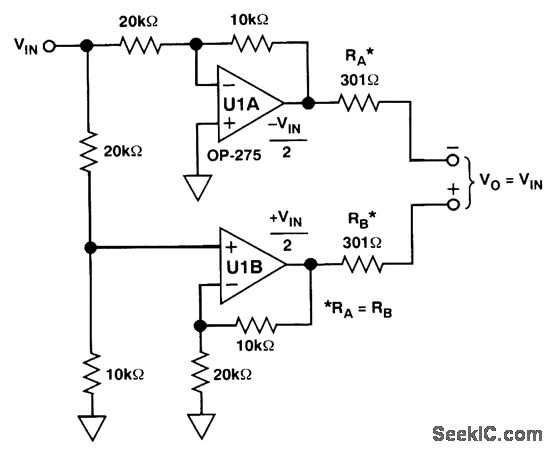

A line driver for 600 Ω can be configured from two IC op amps. U1A and U1B are Analog Devices OP-275. These devices feature low power consurrtption, low THD, and high slew rate.
