PULSE_STRETCHER_WITH_ISOLATION

Published:2009/7/15 21:49:00 Author:Jessie | From:SeekIC

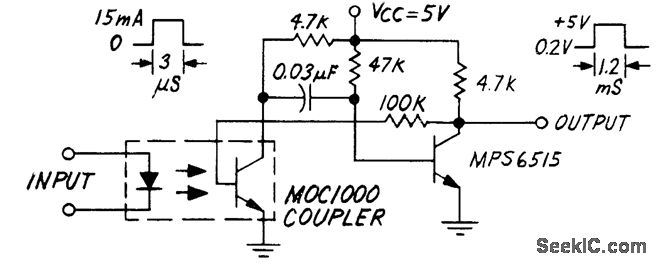

Motorola MOC1000 optoisolator provides safe inter-facing with digital logic while stretching input pulse. Circuit uses phototransistor of optoisolator as one of transistors in mono MVBR. With input pulse width of 3 μs, output pulse width is about 1.2 ms. - Industrial Control Engineering Bulletin, Motorola, Phoenix, AZ, 1973,EB-4.
