PULSE_POSITION_MODULATOR

Published:2009/7/8 4:38:00 Author:May | From:SeekIC

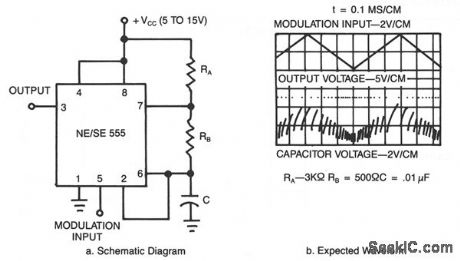

This application uses the timer connected for astable (free-running) operation, with a modulating signal again applied to the control voltage terminal. The pulse position varies with the modulating signal, since the threshold voltage and the time delay is varied.
