PULSE_HEIGHT_TO_TIME_CONVERTER

Published:2009/7/13 5:49:00 Author:May | From:SeekIC

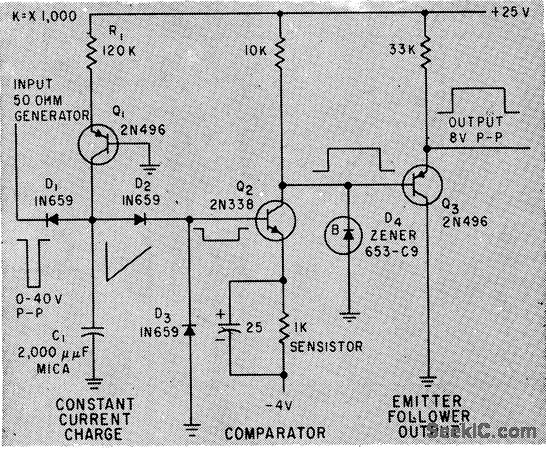

Output width is proportional to input height. Last stage of constant-current charge circuit can be eliminated if output impedance can be high.-D. N. Carson and S. K. Dhawan, Data Conversion Circuits for Earth Satellite Telemetry, Electronics, 33:3, p82-84.
