PULSE_DURATION_MODULATOR_USES_TIMER

Published:2009/7/6 22:14:00 Author:May | From:SeekIC

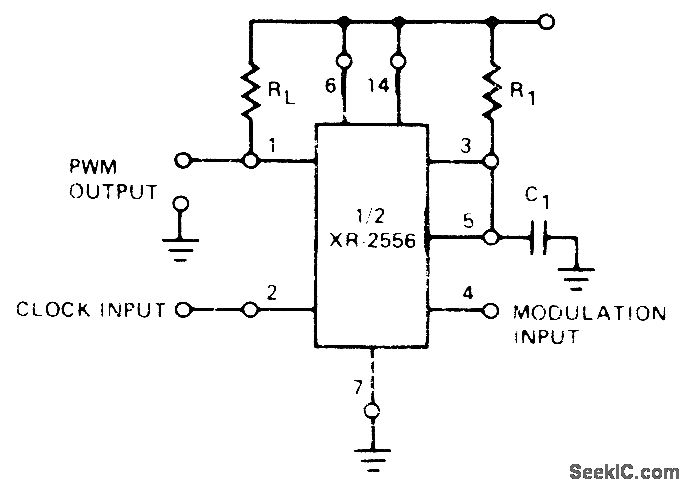

Half of Exar XR-2556 dual timer is connected to operate in monostable mode, for triggering with continuous pulse train. Output pulses are generated at same rate as input, with pulse duration determined by R1 and C1 Supply voltage is 4.5-16 V.- Timer Data Book, Exar Integrated Systems, Sunnyvale, CA, 1978, p 23-30.
