PULSE_DOUBLER

Published:2009/7/5 20:17:00 Author:May | From:SeekIC

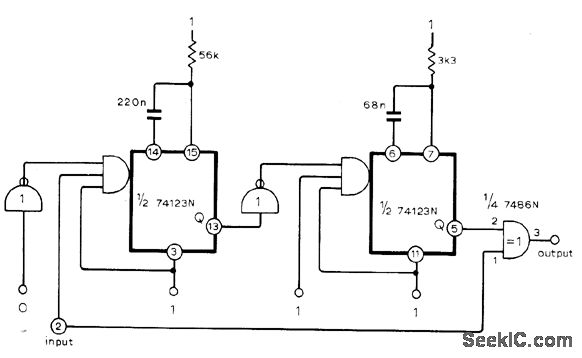

Generates pulses at twice pulse input frequency. Input pulse at first monostable of 74123N makes it run for time TA. Negative edge, terminating TA, triggers second monostable which runs for time TB. If TAequals haff of input period and TB equals width of input pulse, desired result is aehieved wherein additional pulse is generated between input pulses.
