PULSE_COUNTING_F_M_DISCRIMINATOR

Published:2009/7/15 21:00:00 Author:Jessie | From:SeekIC

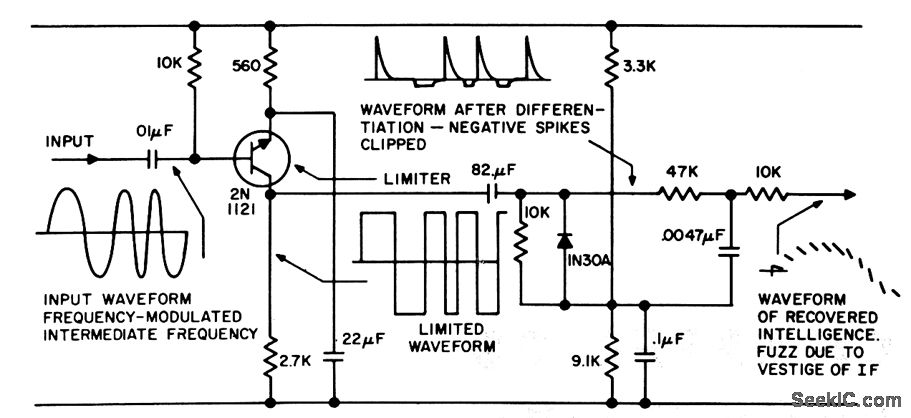

Based on inherent stability of tunnel diode as converter oscillator in f-m receiver for strong-signal locations. Uses 200-kc i-f center frequency as input,-D. Hubbard, Pulse Counter FM Discriminator Design, EEE, 10:7, p 44-49.
