PULSE_COUNTER

Published:2009/7/14 3:53:00 Author:May | From:SeekIC

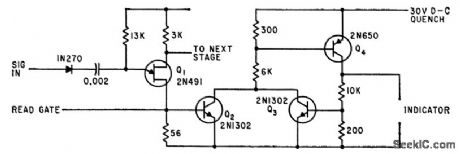

Unijunction transistor Q1 servos as counter, with other counter stages being identical. Q3 and Q4 energize and lock readout circuit until quench pulse is applied after next counting cycle.-F. W. Kear, Unijuncfion Transistor Pulse-Circuit Design, Electronics, 35:21, p 58-60.
