PT2398 reverberation processing integrated circuit diagram

Published:2011/5/9 3:07:00 Author:Ecco | Keyword: reverberation processing , integrated circuit | From:SeekIC

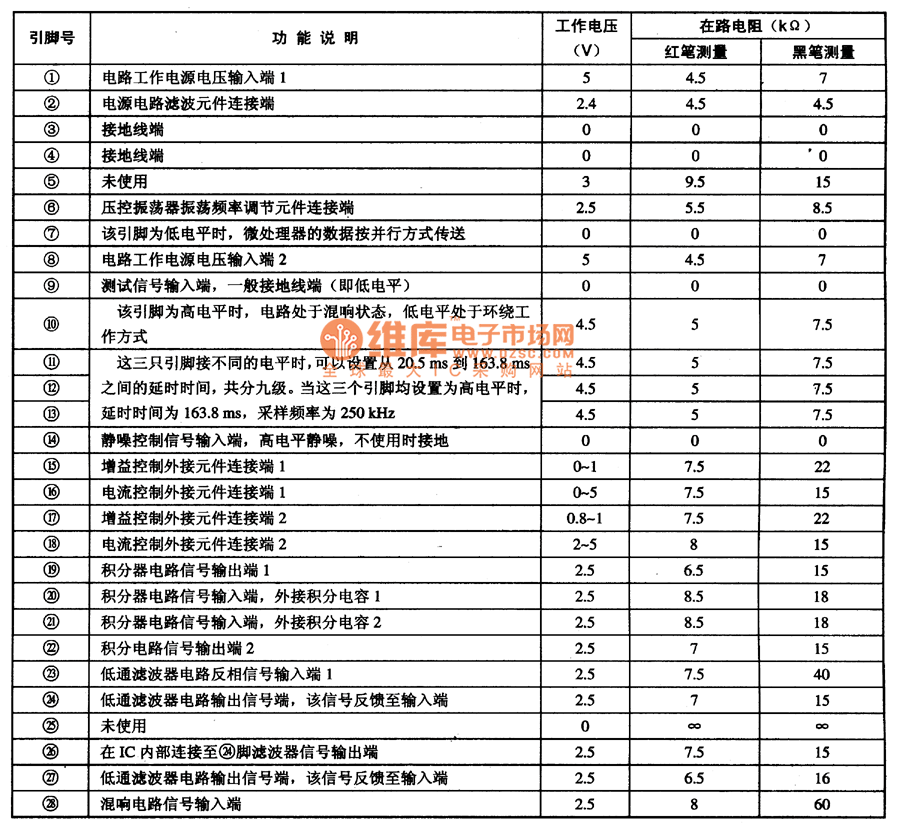

PT2398 is the reverberation processing integrated circuit produced by PT company, it is widely used in various audio systems as reverberation processing. 1. Features of functionsPT2398 IC includes low-pass filter circuit, voltage controlled oscillator circuit, delay time control circuit, mode control circuit, the central control unit circuit and its related subsidiary circuit. 2. Pin functions and data PT2398 IC uses 28-pin dual in-line package, the pin functions and data are listed in Table. 3. The typical application circuit The block diagram and the typical application circuit of PT2398 integrated circuit are shown as the chart.
