PROGBAMMED__DIVIDE_BY_179

Published:2009/7/14 4:09:00 Author:May | From:SeekIC

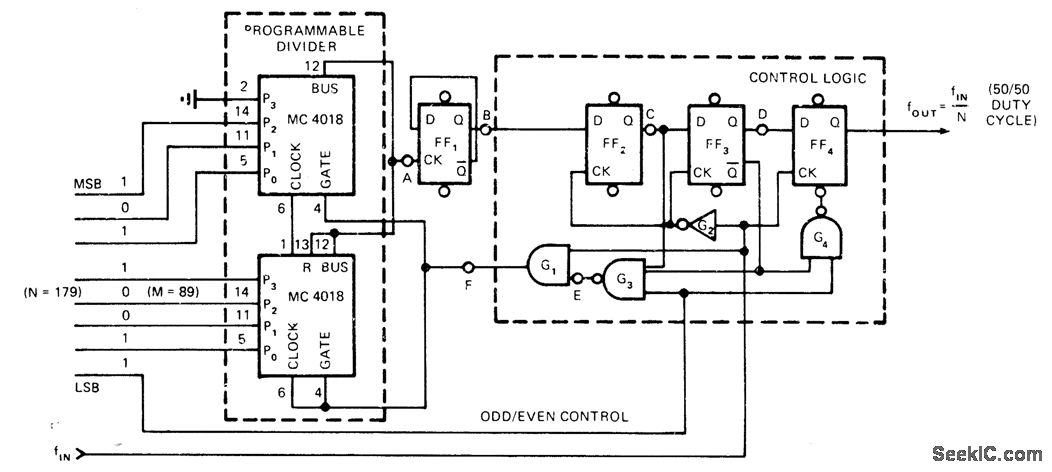

Produces symmetrical output waveforms even if divider ratios are large, variable, and even or odd. Circuit is set up for output of N = 179, for which M= 89 is programmed into divider and odd/even control of logic is a .0 Control logic can be simplified, depending on particular requirements; thus, if perfect symmetry is notessential,G4 and FF4 can be eliminated, Article tells how to program for any other value of N.-V. R. Godbole, Programmable Divider Maintains Output Symmetry, EDN Magazine, July 5, 1974, p 72-74.
