PRECISION_TIME_DELAY

Published:2009/7/15 3:22:00 Author:Jessie | From:SeekIC

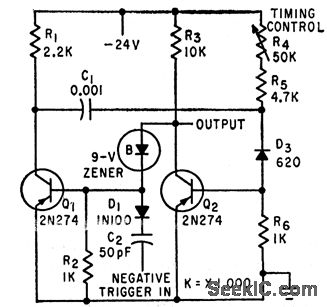

Used as range gate delay in doppler radar boxcar circuit, as expanded-range indicator sweep, and for generation of gate waveforms. Output litter is less than 4 nsec over delay range of 3 to 35 microsec. Negative-going output pulse is 9V peak. Reliability is achieved chiefly through isolation of timing network R4-R5-C1 during timing interval -P. E. Harris, Insuring Stability in Time Delay Multivibrators, Electronics, 33:15, p 73.
