PRECISION_SQUARER

Published:2009/7/7 21:57:00 Author:May | From:SeekIC

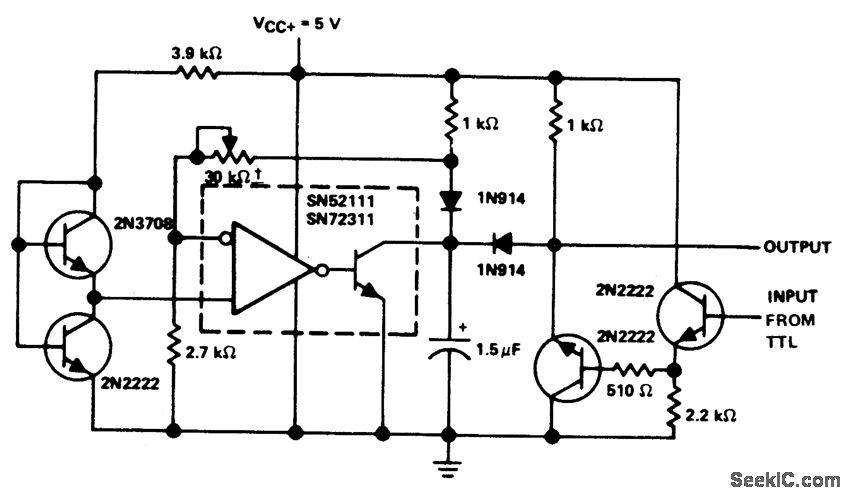

Circuit using differential comparator IC accepts input from TTL anddelivers square of input signal voltage to output. Adjust 30K pot to set clamp level. - The Linear and Interface Circuits Data Book for Design Engineers, Texas Instruments, Dallas, TX, FROM 1973, p 6-116.
