POWER_ON_RESET

Published:2009/7/1 21:22:00 Author:May | From:SeekIC

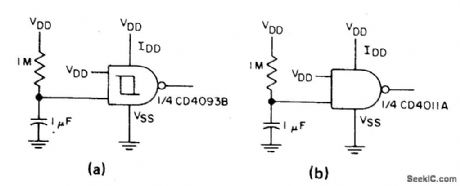

A reset pulse is often required at power-on in a digital system. This type of reset pulse is ideally provided by this circuit. Because of the high input imp-edance of the Schmitt trigger, long reset pulse times may be achieved without the excess dissipation that results when both output devices are on simultaneously, as in an ordinary gate device (B).
