POWER_ONE_SHOT

Published:2009/7/16 12:40:00 Author:Jessie | From:SeekIC

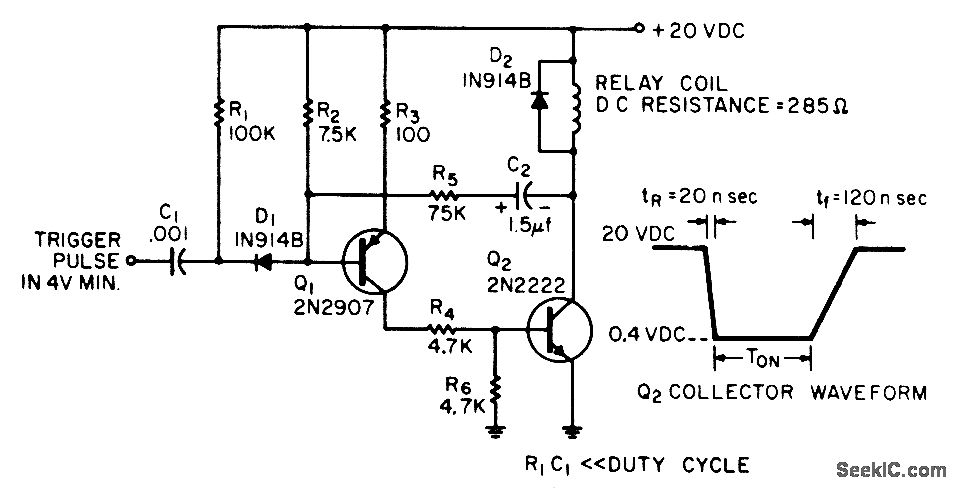

Complementary-symmetry one-shot supplies 1.4 W for 0.1 sec to relay coil on very low duty cycle, without drawing standby power. Used to discharge large 10-kv capacitor. -W. P. Mitchell, Power One-Shot, EEE, 13:6, p 68.
