POWER_CONVERTER

Published:2009/7/13 20:12:00 Author:May | From:SeekIC

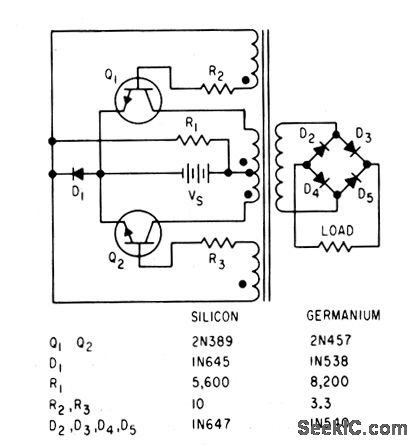

Silicon transistor version gives 15w output from 24-V supply at 70% efficiency, while germanium version gives over 100w at 90% efficiency. With germanium transistors, diode D1 and supply voltage must bereversed.-T.R.Pye, Design of Transislor Power Converters, Electronics, 32:36, p56-58;
