POWER_BOOSTER_1

Published:2009/7/6 6:41:00 Author:May | From:SeekIC

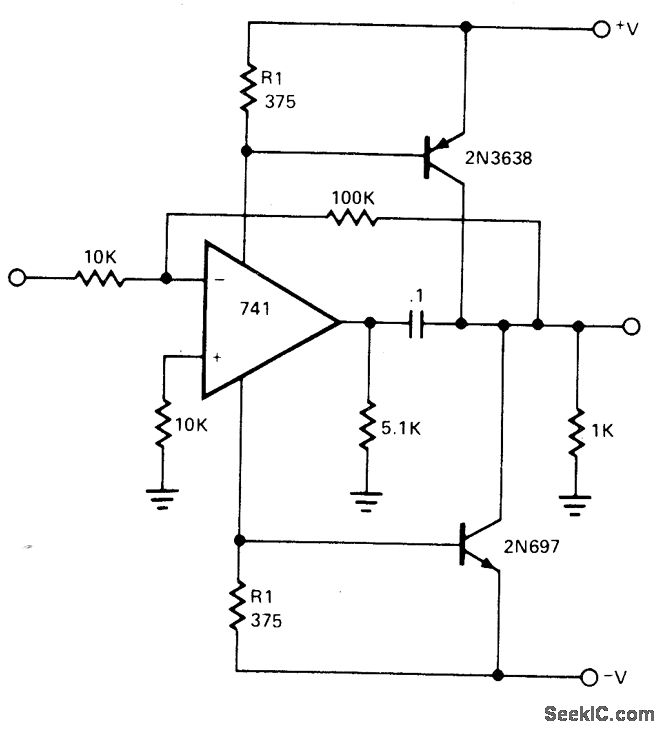

Opamp power booster is used after conventional opamp when greater power-handling capability is required. 741 opamp circuit shown will drive moderate loads. Other opamps may be substituted in power stage if value of R1 is appropriately changed.- Signetics, Analog Data Manual, Signetics, Sunnyvale, CA, 1977, p 640-642.
