POSITIVE_SHUNT_REGULATION

Published:2009/7/8 23:34:00 Author:May | From:SeekIC

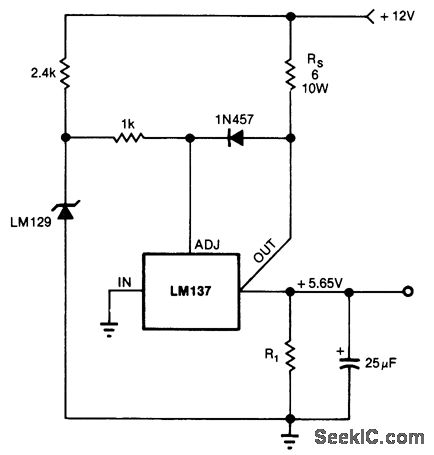

Connection shown for LM137 negative series regulator provides high-reliability positive shunt regulation for applications having high-voltage spike on raw DC supply. Output is 5.65 V.-P. Lefferts, Series Regulators Provide Shunt Regulation, EDNMagazine, Sept.5, 1978, p 158 and 160.
