POSITIVE_GATING_OF_CLOCK_PULSES

Published:2009/7/15 22:56:00 Author:Jessie | From:SeekIC

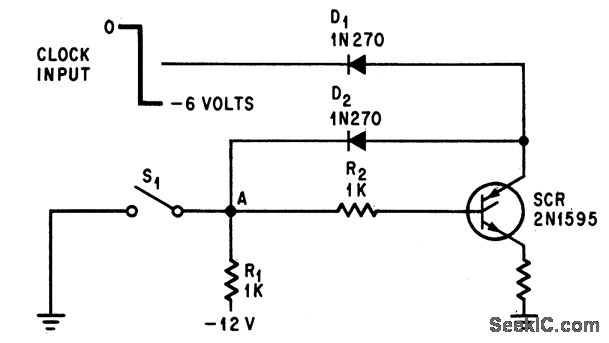

Adding scr latch to diode gate allows output to follow dock input when S1 is dosed. When S1 is open, output will be fixed at existing dock level, without putting extra count into register.-R. A. Wilson, Latching Gate Removes Counter Ambiguity, Electronics, 39:7, p 91-92.
