POSITION_CONTROL_FOR_GRAPHICS

Published:2009/7/6 20:44:00 Author:May | From:SeekIC

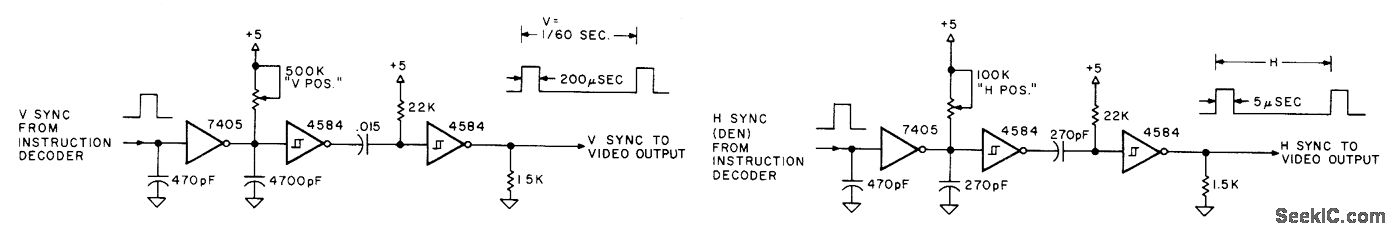

Six Inverters serve for moving entire character display to any position on TV screen，Display is produced by microprocessor through alphameric data-to-video converter. Circuit requires continuous feed of H and V signals from instruction decoder of microprocessor.-D. Lancaster, TVT Hardware Design, Kilobaud, Jan. 1978, p 64-68.
