POSITIONING_AND_ATTENUATING_CONTROL

Published:2009/7/20 1:59:00 Author:Jessie | From:SeekIC

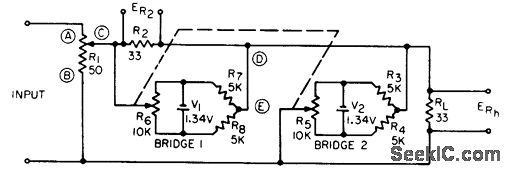

Adds d-c positioning voltage lo input signal of recording galvanometer. Magnitudes of input and positioning voltages can be varied independently without interaction. Circuit also has attenuating control for signal voltage.-N. Kassowitz, Non-Interacting Positioning and Attenuating Controls, EEE, 13:3, p 47.
