POLICE SIREN Circuit

Published:2013/3/5 20:37:00 Author:Ecco | Keyword: POLICE SIREN | From:SeekIC

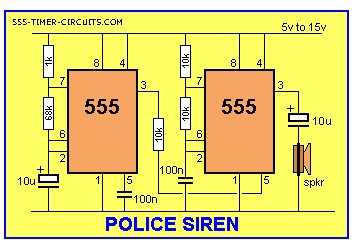

The Police Siren circuit uses two 555's to produce an up-down wailing sound. The first 555 is wired as a low-frequency oscillator to control the VOLTAGE CONTROL pin 5 of the second 555. The voltage shift on pin 5 causes the frequency of the second oscillator to rise and fall.
