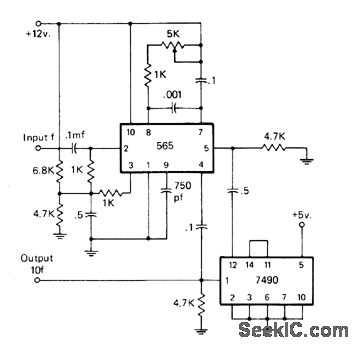

PLL_MULTIPLIES_BY_10

Published:2009/7/5 3:55:00 Author:May | From:SeekIC

Used with frequency counter to measure very low frequencies. Two such circuits can be cascaded to give multiplication by 100. Requires +5 V and +12 V supplies.-H. S. Laidman, Upgrading Inexpensive Counters, CQ, Aug. 1975, p 16-22.
