PLL_FOR_001_Hz_TO_100_kHz

Published:2009/7/15 4:43:00 Author:Jessie | From:SeekIC

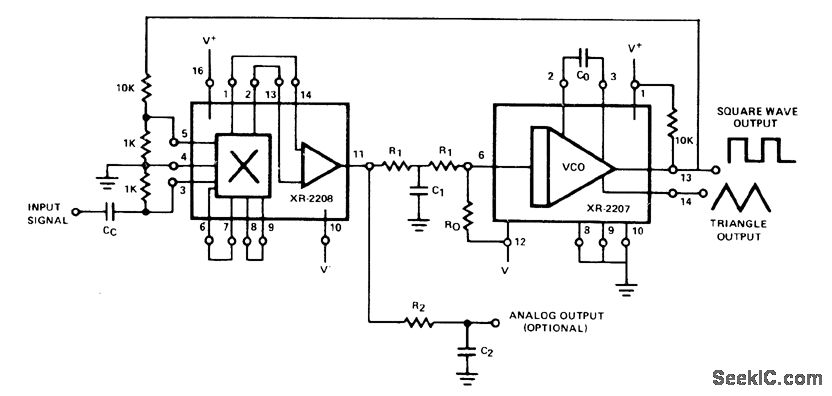

Highly stable and precise phase-locked loop system using Exar XR-2207 VCO and XR-2208 operational multiplier is suitable for wide range of applications in data transmission and signal conditioning. Supply voltage range is 16 V to ±13 V. For 10-kHz center frequency, Rois 10K and Co is 0.01μF. R1 and C1 which determine tracking range and low-pass filter characteristics, are 45K and 0.032μF,- Phase-Locked Loop Data Book, Exar Integrated Systems, Sunnyvale, CA, 1978, p 62-64.
