PLL_DECODER

Published:2009/7/10 6:19:00 Author:May | From:SeekIC

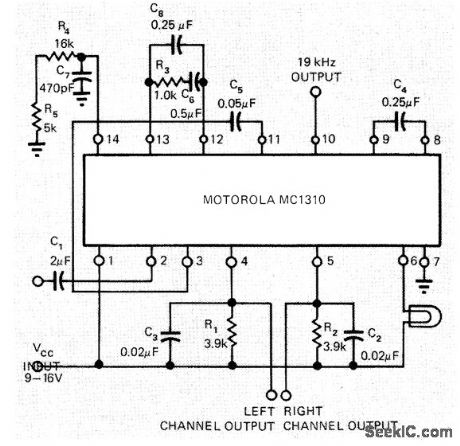

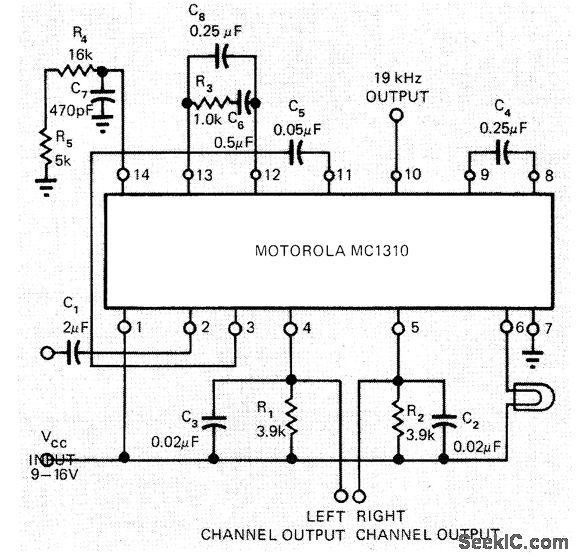

Motorola MC1310 phase-locked loop stereo decoder requires only one adjustment, by 5K pot R5. With pin 2 open, adjust R5 until reading of 19.00 kHz is obtained with frequency counter at pin 10. Alternatively, tune to stereo broadcast and adjust R5 to center of lock-in range of stereo pilot lamp. Circuit gives 40-dB separation and about 0.3% total harmonic distortion.-B. Korth, Phase-Locked Loop Stereo Decoder is Aligned Easily, EDN Magazine, Jan. 20, 1973, p 95.
