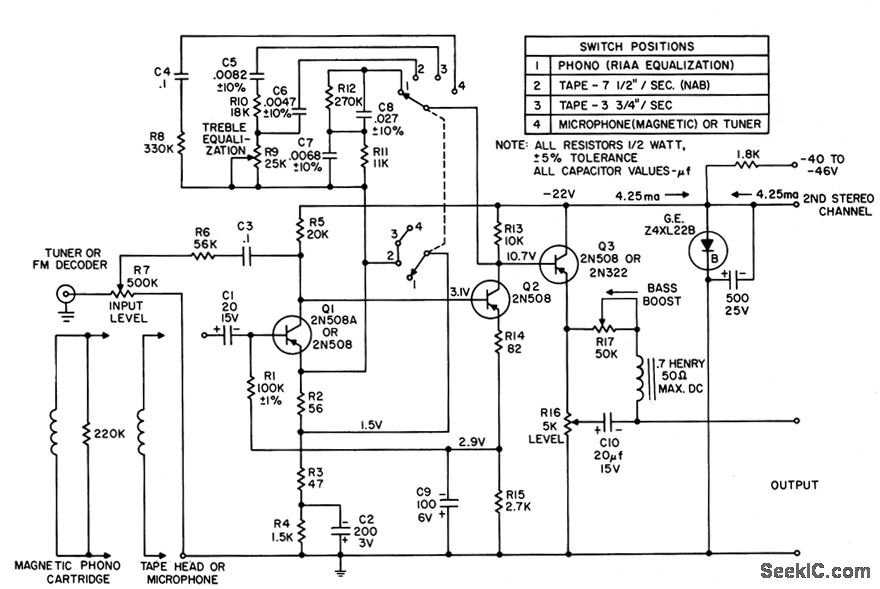

PHONOTAPEAND_MICROPHONE_PREAMP

Published:2009/7/14 3:58:00 Author:May | From:SeekIC

Total harmonic or intermodulation distortion isless than 0.3% at reference level output of 1 v. Will take most magnetic pickupimpedances. Equalized output is constant within 1 db from 40 cps to 12 kc. - Transistor Manual , Seventh Edition ,General Electric Co.,1964,p 252.
