PC, CPU overheat language warned circuit diagram

Published:2014/3/13 23:04:00 Author:lynne | Keyword: PC, CPU overheat language warned circuit diagram, | From:SeekIC

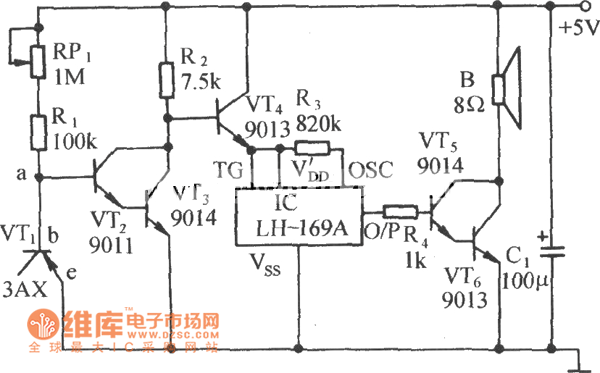

The circuit shown in FIG. It consists of a temperature sensor, temperature electronic switch circuit composed of sound and language. On hot summer season, PC's central processing unit CPU overheating often, the circuit VT1 die close to the CPU chip, radiator, once the CPU overheating, the circuit will issue a Notice that temperature cautioned statement, reminded officers to take measures to cool.
