PCA8516 Characters Form Integrated Circuit

Published:2011/8/25 22:43:00 Author:Michel | Keyword: Characters Form, Integrated Circuit | From:SeekIC

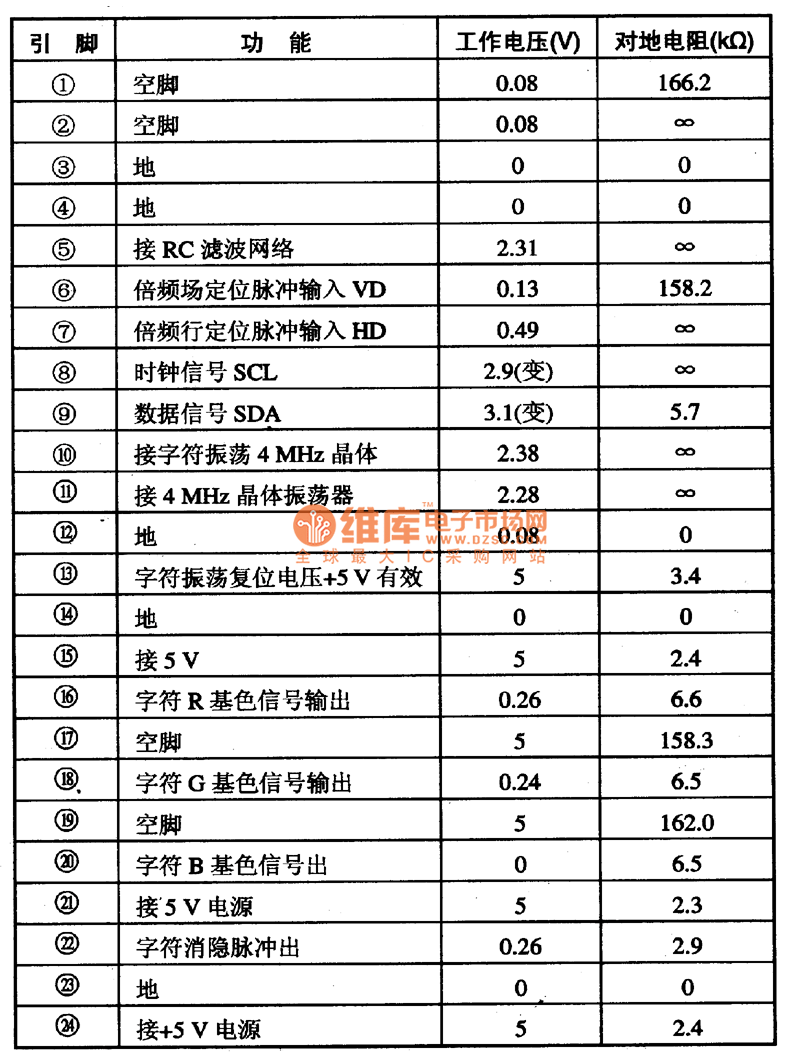

PCA8516 is character type integrated circuit that is produced by Philips Company and it is widely used in the big screen color TV,for example,ChangHong DT2O00 times frequency color TV. PCA8516 integrated circuit contains the field line positioning pulse processing circuit, characters and clock oscillating circuit, characters and gezer signal circuit, character display vanishing circuit and some other auxiliary functions circuit. The IC adopts 24 DIP package and its pins functions and data are shown as table 1. Table 1:PCA8516 Pins Functions and Data
