PCA8515 character formation integrated circuit diagram

Published:2011/5/12 1:45:00 Author:Ecco | Keyword: character , formation , integrated circuit | From:SeekIC

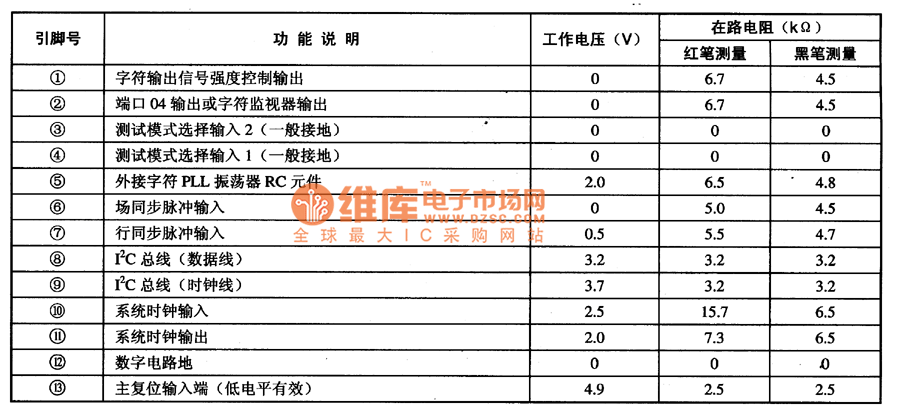

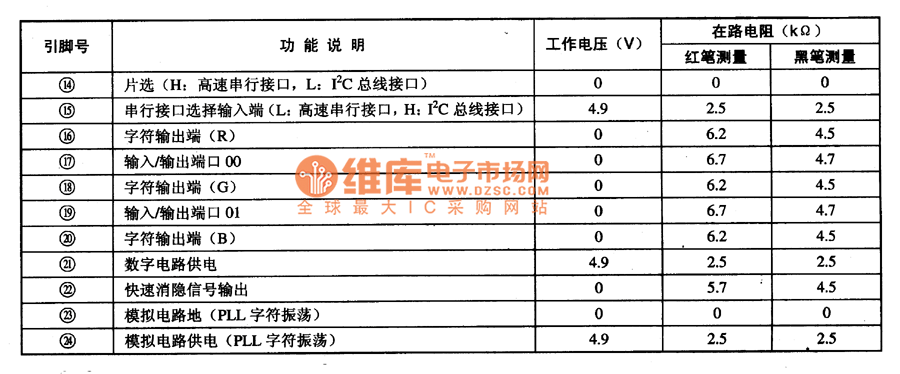

PCA8515 is the character formation integrated circuit produced by Philips, it is widely used in large screen color TV, such as Changhong color TV projection series. 1. Features of functionsPCA8515 ICcontains display with horizontal and vertical positioning pulse processing circuit, the character clock circuit, I2C bus interface circuit, reset circuit, serial interface circuit, and other auxiliary functions circuit. The block diagram of the circuit is shown as the chart. 2. Pin functions and data PCA8515 uses the hundred inserting package with 24 pin in dual rows, the pin functions and data are listed in Table.
