PB5020/21/22 typical application circuit

Published:2011/6/14 1:26:00 Author:Christina | Keyword: typical application | From:SeekIC

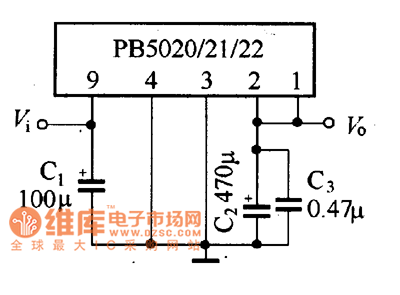

The PB5020/21/22 typical application circuit is as shown in the figure. This circuit has the features of less external components, wide input voltage range and it does not need to add the heat sink. The MAX849 typical application circuit
